Q345D round bar

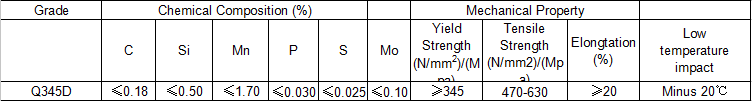

Steel grades by the representative of the yield strength of the Chinese phonetic alphabet, yield strength values, composed of three parts quality rating symbol, such as: Q345D. Wherein: Q- steel yield strength "Qu" Hanyu Pinyin first letter of the word; 345 yield strength value, the unit MPa; D- quality rating of D grade (grade divided into A, B, C, D, E).
Q345D is commonly used in China's low-alloy plate. And Germany S355J2, American ASTM A529MGr50 the same level, slightly different chemical composition, mechanical properties of the same.
In normalized terms of delivery, and Germany S355J2G3 the same, and even S355J2G4 almost identical in performance. It can be used interchangeably.
Specifications 8-280. Complete specifications!
| 8*C |
| 8*C |
| Φ8 |
| 10*C |
| Φ12*C |
| Φ16*C |
| Φ18*C |
| Φ14*6000 |
| Φ18*6000 |
| Φ20*6000 |
| Φ22*6000 |
| Φ25*6000 |
| Φ30*6000 |
| φ30*6500 |
| Φ32*6000 |
| Φ35*6000 |
| Φ45*6000 |
| Φ50*1600 |
| Φ50*6000 |
| Φ50*9000 |
| Φ55*6000 |
| Φ55*6000 |
| Φ57*4600 |
| Φ57*5600 |
| Φ57*5900 |
| Φ65*200 |
| Φ65*6000 |
| Φ65*8000 |
| Φ70*6000 |
| Φ70*6000 |
| Φ73*4700 |
| Φ80*6000 |
| Φ85*6000 |
| Φ85*6000 |
| Φ90*6000 |
| Φ90*6000 |
| Φ90*6900 |
| Φ95*6000 |
| Φ105*4400 |
| Φ105*6000 |
| Φ110*600 |
| Φ110*6000 |
| Φ120*6000 |
| Φ130*6000 |
| Φ140*6000 |
| Φ140*6000 |
| Φ145*6000 |
| Φ150*6000 |
| Φ150*6000 |
| Φ155*6000 |
| Φ155*6000 |
| Φ160*6000 |
| Φ165*6000 |
| Φ170*6000 |
| Φ180*6000 |
| Φ190*6000 |
| Φ190*6000 |
| Φ200*6000 |
| Φ210*6000 |
| Φ230*6000 |
| Φ240*6000 |
| Φ250*6000 |
| Φ260*6000 |
| Φ270*6000 |
| Φ280*6000 |
